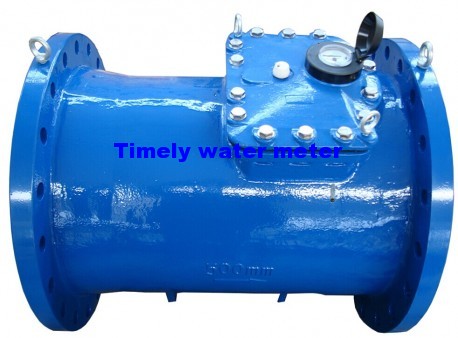

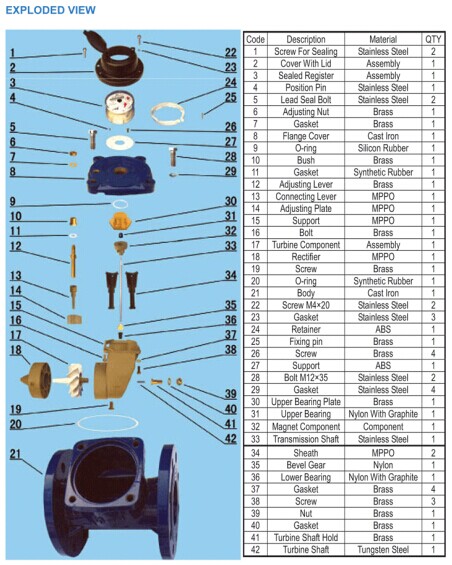

Removable element woltman cold (hot) water meter
Removable element woltman cold (hot) water meter

LXLC(R)-50~600(mm)

This type of water meter can be used for a remote reading transmission system as equipped with abuilt-in sensor.


Application:

--Measuring the volume of cold (hot) water passing through the pipeline

 Feature:

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

--Dry-dial, Magnetic drive sensitive action, small pressureloss;

--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;

--Selected high quality materials for steady &reliable characteristic;

--Technical data conform to international standard ISO4064.

Working condition:

Water temperature: 0.1~50 ( 0.190 for hot water meter)

Water pressure: 1Mpa (1.6MPa for special requirement)

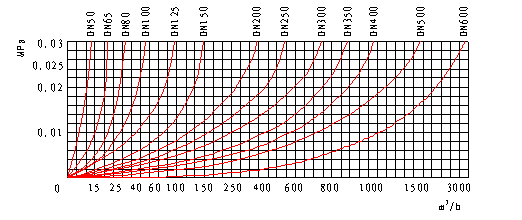

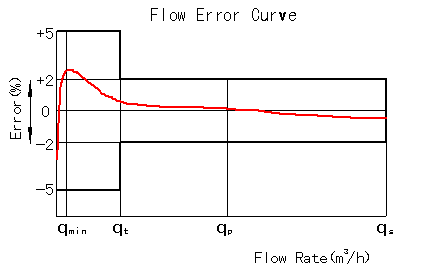

 Maximumpermissible errors

(1)in the lower zone from qmininclusive up to but excluding qt is ±5%

(2)in the upper zone from qtinclusive up to and including qs is ±2% (±3% for hot water meter)


MAIN TECHNICAL SPECIFICATIONS

Type

Size(mm)

Class

qs
Max Flow

qpNominal Flow

qt
Transitional Flow

qminMin.Flow

Min.
 Reading

Max.
Reading

m3/h

m3

LXLC-50

50

A

30

15

4.5

1.2

0.01

999999

B

3.0

0.45

LXLC-65

65

A

50

25

7.5

2.0

0.01

999999

B

5

0.75

LXLC-80

80

A

80

40

12

3.2

0.01

999999

B

8.0

1.2

LXLC-100

100

A

120

60

18

4.8

0.01

999999

B

12

1.8

LXLC-125

125

A

200

100

30

8

0.01

999999

B

20

3

LXLC-150

150

A

300

150

45

12

0.1

9999999

B

30

4.5

LXLC-200

200

A

500

250

75

20

0.1

9999999

B

50

7.5

LXLC-250

250

A

800

400

120

32

1

99999999

B

80

12

LXLC-300

300

A

1200

600

180

48

1

99999999

B

120

18

LXLC-400

400

A

2000

1000

300

80

1

99999999

B

200

30

LXLC-500

500

A

3000

1500

450

120

1

99999999

B

300

45

LXLC-600

600

A

6000

3000

900

240

1

999999999

B

600

90

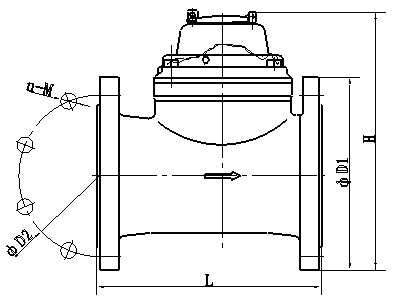

DIMENSIONS AND WEIGHT

Type

Size

Length

Height

G

Connecting flange

Weight   kg

mm

D

Outer dia.

D1

 Bolt cirle dia.

Connecting Bolt pcs

LXLC-50

50

200

255.8

400

165

125

4-M16

12

LXLC-65

65

200

242

360

185

145

4-M16

13

LXLC-80

80

225

275.8

400

200

160

8-M16

16

LXLC-100

100

250

285.8

400

220

180

8-M16

19

LXLC-125

125

250

275

360

250

210

8-M16

20

LXLC-150

150

300

345.3

500

285

240

8-M20

42

LXLC-200

200

350

372.5

500

340

295

8-M20

64

LXLC-250

250

450

492.8

730

395

350

12-M20

94

LXLC-300

300

500

515.8

730

445

400

12-M20

114

LXLC-400

400

600

630.8

830

565

515

16-M24

199

LXLC-500

500

800

738.5

931

670

620

20-M24

340

LXLC-600

600

500

880



780

725

20-M27



NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.
