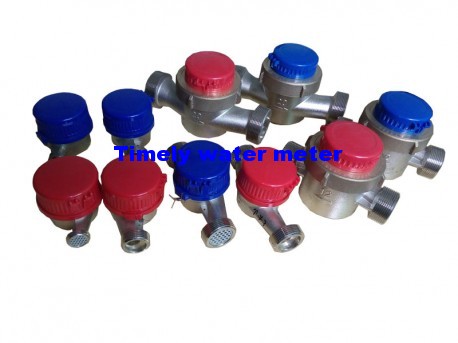

SINGLE JET DRY TYPE WATER METER
SINGLE JET DRY TYPE WATER METER
Model:  LXSC-13D~40D

 APPLICATION:

Measuring the volume of cold potable water passing through the pipeline

FEATURES:.
Dry type, small, light, magnetic drive, free rotating register, easy and long term clear reading etc. Magnet resistance with LXSC-13D~40D

WORKING CONDITION

Water temperature: ≤40℃ for cold potable water meter
pressure: ≤1Mpa

Maximum Permissible Error

a)In the lower zone from Qmin inclusive up to but excluding Qt is: Cold potable and Hot water meter ±5%

b)In the upper zone from Qt inclusive up to and including Qsis: Cold potable water meter±2%, Hot water meter±3%

 MAIN TECHNICAL DATA

Type

Size (mm)

Class

qs
Max. Flow

qp
Norminal Flow

qt
Transitional Flow

qmin
Min.Flow

Min.Reading

Max.Reading

m3/h

L/h

m3

LXSC-13D

13

A

3

1.5

150

60

0.0001

99999

B

120

30

LXSC-20D

20

A

5

2.5

250

100

0.0001

99999

B

200

50

LXSC-25D

25

A

7

3.5

350

140

0.0001

99999

B

280

70

LXSC-32D

32

A

12

6

600

240

0.0001

99999

B

480

120

LXSC-40D

40

A

20

10

1000

400

0.001

99999

B

800

200

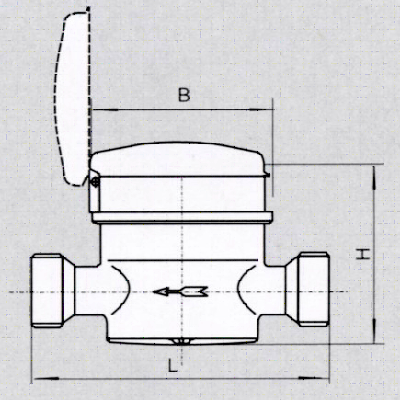

DIMENSIONS AND WEIGHT

Type

Size

Length

Width

Height

Connecting Thread D

Weight kg

mm

LXSC-13D

13

80/110

72

69

G 3/4B

0.70

LXSC-20D

20

130

72

69

G 1B

0.85

LXSC-25D

25

160

77

92

G1 1/4B

1.47

LXSC-32D

32

200

110

120

G1 1/2B

2.56

LXSC-40D

40

200

110

120

G 2B

2.9

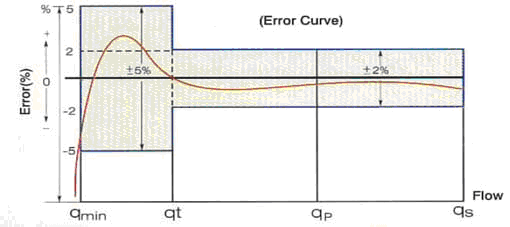

 FLOW ERROR CURVE

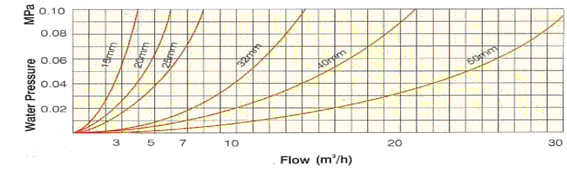

PRESSURE LOSS CURVE
